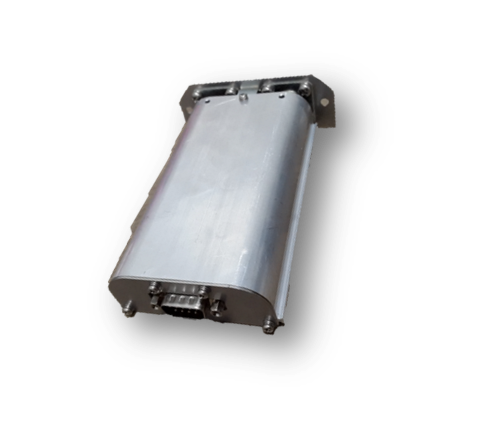

Technical Specification
| Model | ACS-RM110 | |
|---|---|---|
| Protocols | Compliant to AISG 2.0 / 3GPP | |
| Input voltage range | +10 ~ +30VDC (pin 6) | |
| Power consumption | < 2W (stand by); < 13W (motor activated) | |
| Connectors | AISG |
2 x 8 pin connector acc. to IEC 60130-9 Acc. to AISG Daisy chain in : male; Daisy chain out : female |
| Antenna | 9 pin D-Sub male | |
| Hardware interface | AISG |
RS485A/B (pin5/pin3); Power supply (pin6); DC return (pin7) Acc. to AISG |
| Adjustment time(full range) | 40 sec (typically, depending on antenna) | |
| Adjustment resolution | 0.1° | |
| Temperature range | -40 ~ +70℃ | |
| Protection class | IPx4(@plugged in antenna) | |
| Surge protection | 8/20US ±5KA(Line to Line, IEC61000-4-5 Class 4) | |
| Housing material |
Body: Al (WHITE CROMATE) Cover: Al (WHITE CROMATE) FRONT PANEL : Al (WHITE CROMATE) |
|
| Weight | < 500g | |

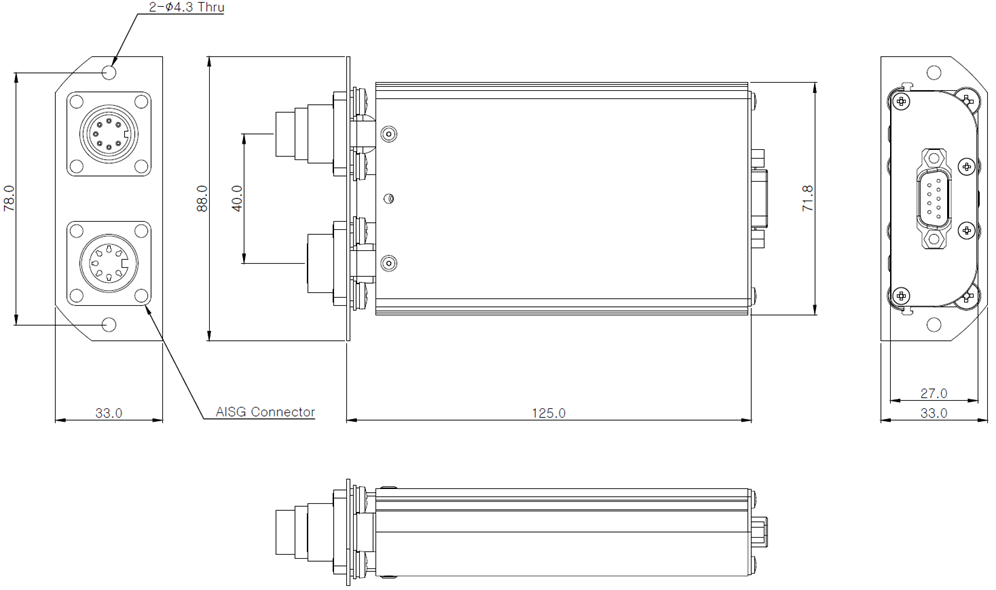

| Dimensions (W x D x H) | 125.0 × 71.8 × 33.0 mm(Only Body) | |
