Technical Specification

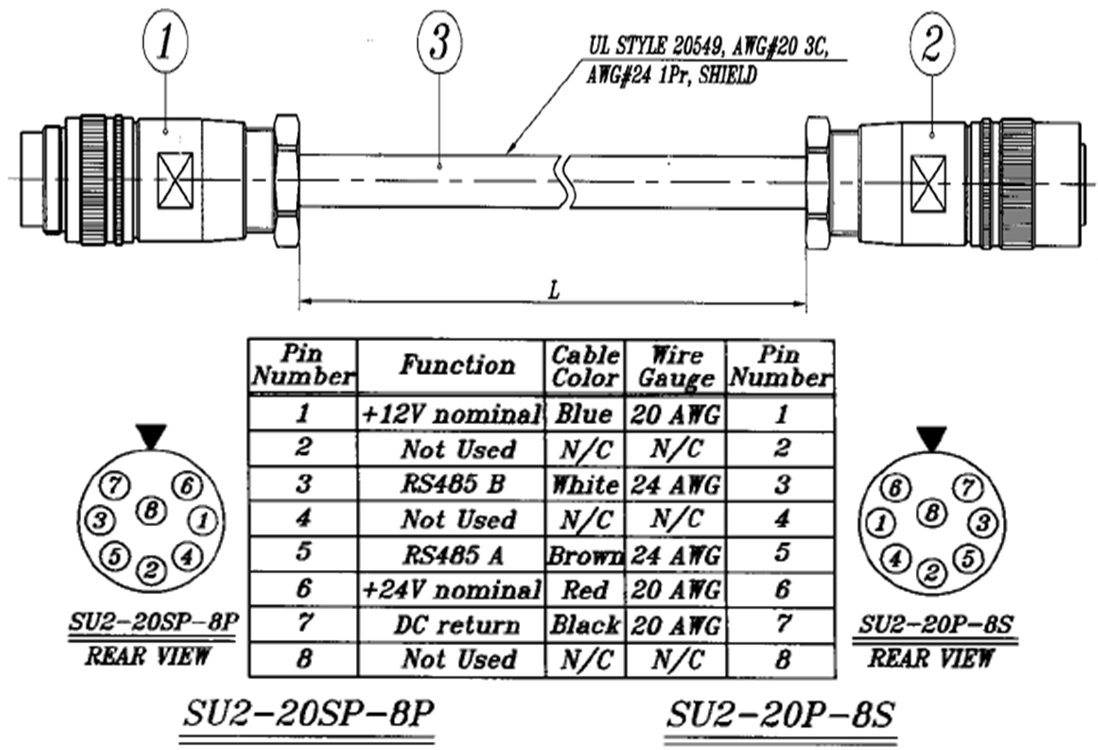

| Part No. | ASIG Jumper Cable Ass’y |
|---|---|
| Voltage | AC 250 V |
| Current | 5 A |
| Operating Temperature | -40 ~ +85 ℃ |
| Cable Diameter | ф4~ ф8 Max (Max AWG 20) |
| Insulation Resistance | 1010Ω Min |
| Contact Resistance | 5mΩ Max |
| Dielectric Withstanding Voltage | 2mA Max (Leakage Current) |
| Inserting / Disconnecting Force | 65N Max / 8.8N Min |
| Salt Spray | 720Hours |
| Heat Resistance | 2hours @ + 85℃ / 10MΩ Min |
| Cold Resistance | 2hours @ - 40℃ / 10MΩ Min |
| Water Resistance | 21days @ +40℃with Humidity 90 ~ 95% / 10MΩ Min |
